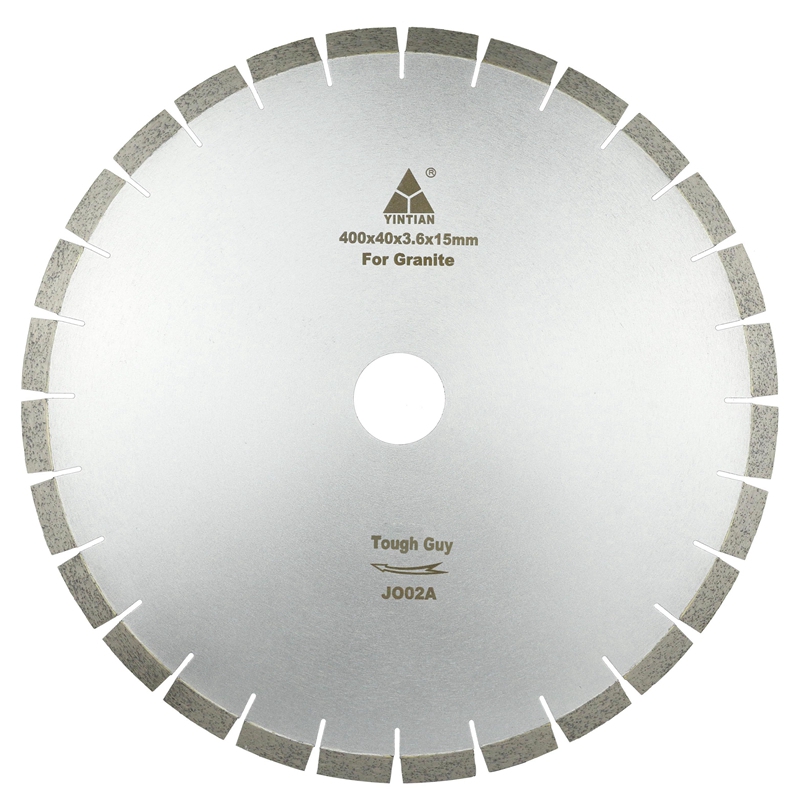

  • Yintian Tough Guy specially designed for hard, fragile, high-grade and other unusual granite slabs. it’s so sharp, smooth and precise cutting without chipping and breaking. stable quality. consistent cutting effect from beginning to end. bore diameter, slot, segment shape can be changed as you need.



    Brand Yintian
    Diameter 400mm
    Seg.number 28
    Segment Size L40×W3.6×H15mm
    Bore 50/60mm







Name Picture Diameter Bore Slot

Type

Segments Size Seg.Number
mm Inch

Length

Thickness Height

Granite Blade

φ250

250 10 50/60mm Key

Normal/silent

40 3.2 12/15 17

Granite Blade

φ300

300 12 50/60mm U/Key Normal/silent 40 3.2/3.3 12/15 21

Granite Blade

φ350

350 14 50/60mm U/Key Normal/silent 40/27 3.3 10/12/14/15/20 24/25/34

Granite Blade

φ400

400 16 50/60mm U/Key Normal/silent 40/27 3.6/3.7 12/14/15/20 28/38

Granite Blade

φ450

450 18 50/60mm U/Key Normal/silent 40 4.2/4.3 12/15 32

Granite Blade

φ500

500 20 50/60mm U/Key Normal/silent 40 4.2/4.3 12/15 30/36

Granite Blade

φ600

600 24 50/60mm U/Key Normal/silent 40 4.5/4.8 12/15 36/42

Granite Blade

φ700

700 28 50/60mm U/Key Normal/silent 40 5.5 12/15 40/50

Granite Blade

φ800
  800 32 50/60mm U/Key Normal/silent 40 6 12/15 46
  • Tough Guy Cutting The Golden Diamond Grain
  • Tough Guy Cutting The Plateau Snow
  • Tough Guy Cutting The Imperial Red
  • Tough Guy Cut
    Mongolia Black use for the stairs of hotel
  • Tough Guy Cut
    the TAN BROWN use for Cabinet board
  • Tough Guy Cut
    the Golden Leaf use for floor
  • Tough Guy Cut the
    Golden Leaf use for bathroom corridor
all the diamond saw blade in yintian has been inspected through the automatic standard atmospheric pressure testing instrument to test the welding strength, to make sure that the segment don't fall; at the same time with the inspection of the level of sampling, to make sure that each blade of the weld alignment at the center line, both segment between the saw blank consistently, the size is about 0.45mm, error is less than 0.05mm
all the diamond saw blade produced by yintian has been tested through artificial measurement, laser proofing and computer scanning triple-line operation of the specification parameters to make sure the deviation is less than 0.1mm; after sintered process, the test of digital caliper micrometer ensures the higher specification consistent quality and perfect appearance of each blade.
The diamond saw blade produced by Yintian Company will be tested by oxygen analyser for hardness range while in the molding stage to ensure the blade oxygen content≤0.01%, after which the diamond saw blade has antioxidant ability and stable performance. At the same time, through weight single amount inspection and batch re-inspection can insure the segment weight deviation≤0.02g, the flatness of blade error≤0.02mm.
The saw blank that Yintian Company adopted all inspected by nine quality indicators including end jump, diameter jump, tension, bending strength and groove design etc., which ensures the saw blade disperses stress, cuts stable, not yaw, fast heat while cutting, the saw blank is protected so that it can be repeatedly welded using for over than 4 times.
Exclusive blade especially for cutting high-grade, high-density, hard and abrasive granite
The segment of Tough Guy is so sharp to cutting various common and high hard granite such as Mongolia Black, TAN BROWN etc. But also good at cutting and processing the uncommon granite of More brittle, easily broken, uneven texture, such as the Golden Leaf, Leopard, African Persa,electrolytic plate and other dyeing plate. Tough Guy smooth and precise cutting without chipping and breaking.
Long working lifespan, cutting results as you wish
Yintian Tough Guy is a new type of ultra-thin and high grade granite saw blade, it is based on Yintian 2SD Patent, a perfect balance formula with 20 years of experience. take the 600×600mm specification TAN BROWN of 2cm thick as an example, Its cutting square number is close to 300㎡.
High speed cutting effect can greatly improve the processing efficiency.
Yintian Tough Guy with unique formula, elegant material, exquisite craft so that the cutting speed far more than other saw blade. Tough Guy cutting the general hardness such as the BLACK MARQUINA, Emperador, the highest cutting speed of up to 11m/min, the mean shear rate of about 9m/min. Tough Guy has a quick feed and a high cutting speed,for your energy and time saving, reduce equipment loss, greatly enhance the efficiency of manual operation.
High cost performance help you save costs and improve profits.
Because Tough Guy achieved a perfect balance on the sharpness and wear resistance, so that extended service life, At the same price, when cutting the same stone, the area of stone cut by Tough Guy is much bigger than the general market granite saw blade, So Tough Guy is definitely the first choice for those who pursue the high cost performance.
Cutting surface is straight and smooth when it cut India Red.
Lifespan ≥200m² when it cut super-hard granite slabs such as Mongolian Black.
Cut super-hard stone speed≥4m/min, conventional slabs speed ≥9m/min.
Other brands granite saw blade cut high-hard granite is chipped and breaked seriously such as Tianshan Red
Lifespan ≤120m² when other brands granite saw blade cut super-hard granite slabs .
Cut super-hard stone speed≤3m/min, conventional slabs speed ≤7m/min.
  • The first type of clients:They are mainly engaged in high-grade stone decoration works, or processing and sale of high-grade, expensive granite plate, therefore, they have strict requirements of the yield of stone, appearance of finished product. such as Hua-an Jade, IMPERIAL RED, Golden Leaf, TROPIC BROWN etc. They have high hardness, high density and high brittleness, this requires the saw blade cutting effect is very perfect, does not appear any collapse edge, drop angle and so on. At the same time, the cutting efficiency and cutting life of Tough Guy is better than the same category saw blade, so that the costs of processing stone tend to be low, profit margins tend to expand.
  • The second type of clients:They processed the stone is hard and has strong grinding such as Mongolia Black,The utility model has the advantages of compact structure, hard texture, strong compression resistance and good abrasive extensibility, this causes the user to change the saw blade in the machining process. Yintian Tough Guy can solve this question perfectly.
  • The third type of clients:The stones which They processed with high sand content, moreover, the quartz particles are large, the density of the stone is small, the internal structure is not balanced, Therefore, it is not only easy to collapse in the cutting process, the wear of the segment is also very serious, such as KARAMORI GOLD. Usually, most brands of similar type of sharp blade, cutting out the KARAMORI GOLD number is 30-60㎡,Yintian Tough Guy maintains high cutting speed, ensure the plate cutting quality fully meet the processing requirements, at the same time, the number of squares is far more than 60㎡.
  • The fourth category of customers:They mainly undertake various engineering large orders, time constraints, high quality standards and strict acceptance, the type of granite and processing requirements of each order are different. Tough Guy can adapt to the processing performance of all granite, to meet the requirements of various granite sawing with complete function, can be used for all kinds of granite imitation, chamfer, edge, good cutting performance. This versatile saw blades improve the processing efficiency of such enterprises to the highest level of the industry, a substantial increase in economic efficiency.
  • The fifth category of customers:They attach great importance to corporate reputation, obsessed with the stone processing precision, stone processing acceptance criteria for any category and grade of the same stringent, meet the needs of customers with high quality used. So the blade requiring the purchase of high cutting precision and stable quality as one, at the same time, high yield, efficiency and life also ensures a certain angle and plate the level of. Yintian Tough Guy cut error was less than 0.2mm, the error is less than or equal to 0.1mm, the average length error and diagonal tolerances were less than 1.5mm, the tolerance of 0.2-0.4mm, the yield reached above 99%.
  • The sixth category of customers:They are processing aerated blocks, quartz stone, all use marble saws to cut part of the sheet, for they tried to use the price of the economy of granite saw blade, but the processing effect is not up to their standards, during the cutting processing, edge does not require perfect offangle without leaving the tail, all of these phenomena seriously affect their production efficiency and rate of waste stone. A high rate of material and reduce the cost, a cutting quartz stone and aerated brick granite blades have been trying to find.

Mr. Guo, the dealer of Yintian in Yiwu International Market

I have owned a store in Yiwu International Trade Market for 7 years, I used to buy sintered saw blades in Danyang, but more and more foreigners began to complain the quality and return goods in 2 years ago. So my business got into trouble and I was very upset. At that time, I heard of Yintian company from my peers. At first, I bought only 100 pieces including 100mm to 180mm to test. To my surprise, my clients reordered the saw blades proactively.Besides.an Australian customer called me overseas, and complained about my cheating in previous orders. He told me to provide only the same quality saw blades as that time I bought from Yintian. Otherwise he wouldn't do business with me. After hanging up, I was full of different feelings. From then on, I just sell Yintian's sintered saw blade, and now my business is running quite well.

Mr. Hong in Malaysia, distributor of granite segments for single-blade and multi-blade

I emigrated from Fujian to Malaysia in ten years ago and began to work on diamond tools business. There is a great need of granite segments for single and multiple blades in my local market. These cutting blades has very high requirements to the sharpness of segments. In first 2 years, I've visited many manufacturers in mainland and Taiwan, also their engineers, but their products are not customized to my needs. Later, my Fujian fellows introduced me an engineer Mr. Wu in Yintian Company. After several times of communication. I found him extremely professional in the formulation design and process treatment, especially in the sharpness controlling formula. We chatted enjoyably, then I tested their 1.8m and 2m granite segments. Nearly all of my customers reflected that time segments are much sharper than the previous, which cut quickly and neatly, thus greatly improving the processing efficiency. Now I've cooperated with Yintian for nearly 10 years, I am sure about their stable quality, they are worthy of trust.


Mr. Huang, the boss of a stone processing plant in Fujian chose Yintian Tough Guy

Mr. Huang is the boss of a stone processing plant in Fujian, the factory is mainly undertake the stone works throughout the country. Huang bought the saw blade from a local dealer, named Mr. Wang. Recent years, with the fiery stone market, Huang’s business bigger and bigger, a large portion of the factory's profits are spent on the cost of saw blades, at the time Mr. Huang worried about it, Wang told Huang he cannot continue to supply the saw blades because of some reasons, and recommended Yintian saw blade to him, Huang immediately contacted Yintian product consultant Zhang, Zhang learned that the workers in the factory did not choose the most suitable blade according to the characteristics of the stone before, it caused a lot of unnecessary waste, So Zhang suggested a detailed solutions to these problems,Huang was satisfied with it and took ten Tough Guy for test, a week later, Huang was happily on the phone and talk about how effective the Tough Guy is, save half the cost of the saw blades. and Mr. Huang said wish a long cooperation with Yintian.



Yintian Group is a certified national high-tech enterprise in China, which specialized in diamond tools for cutting stone. It consists of two manufacturing enterprises ——Hubei Yintian Diamond Cutting Industry Co., Ltd,   Hubei Yintian Diamond tools Co., Ltd,  and an export & import company etc.  Yintian covers an area of 34,000 square meters, have more than 30 engineers, nearly 200 skilled workers, etc.

Our main products are brazed diamond blades, sintered diamond blades, diamond segments for mining saw and polishing pads in hundreds of specifications & thousands of models. Yintian depends on skilled technicians, top-quality products, competitive price perfomance ratio and powerful service system to occupy 30% of domestic market share of granite blades.

Based on Ezhou industrial cluster of diamond tools, aiming at overseas market, our products sell well in the 34 provinces of China and more than 20 foreign countries such as Turkey, Egypt, Brazil, India,Spain and Russia etc.

In 1991, Mr. Xiong Caihua, driven by desire and passion to construct his hometown, returned to Ezhou as soon as he graduated from ZhongNan Finance & Economics University, By the time, Chinese diamond tool industry was originated in Ezhou. Without hesitation, he devoted himself to R&D fomulas for diamond tools. From then on, he started his professional career of saw blade.

Thanks to his talent, hard-working, exploration and innovation, Mr. Xiong invevted 2SD Ultimate Balance Point Formula, which helped Yintian to solve the contradiction between sharpness and lifespan of a saw blad, and created the rudiment of Yintian All-Round King in 1994.which helped Mr. Xiong earn his First Pot of Gold althrough he was just running a small business.

In 1997, Mr. Xiong  launched  Hubei Yintian Dia-mond Tools Co.,Ltd.  Later he gathered an expert team. In order to develop products fitting in well with the demand of stone processing,  they often went deep into some typical large scale stone mining area and stone trade bases to do research.  Additionally, they spent a lot of time in dissecting and studying diamond blades imported from German, Italy, Japan, Korean and America.

When time went by 2009, Yintian's annual sales scale exceeded 1 million pcs & sets. Aimed at long-term business in the international market, Lucy Lau, Mr. Xiong'wife,set up Overseas Business Department, and based on it, established Hubei Yintian Cutting Industry Co.,Ltd  in 2012, developping highend blade &segment for the overseas market in OEM /ODM. Gratefully, their products have been sold well in more than 20 countries, such as Brazil, India, Turkey, Vietnam, Egypt, Jordan, Spain, Australia, Canada, Russia etc.

Offering OEM/ODM for overseas dealers helped Yintian broaden their vision in international markets. From 2012 to 2016, a large scale renewal & transformation of technical equipments took placed in Yintian. As the results, Yintian built more than 50 production lines with more than 100 sets of advanced equipments, including 72 process flow and 38 check & test procedures.Besides, They created a kind of flexible manufacturing technology to achieve ultra-high productivity,while perfectly providing customized saw blades & segments in precise delivery.

Up to now, Led by Mr. and Mrs. Xiong, Yintian Group has built two manufacturing enterprises, one trade company, and a pro-duction base—Yintian Science and Technology Industrial park in Ezhou, working out a series of products fitting in well with the demand not only in domestic but also in overseas, including more than 200 specifications & 1000 models welding saw blades, 100 kinds of sintered saw blades, and more than 60 models of segments for mining saw, etc., solving many kinds of tough problems in stone proessing.

Yintian do their best efforts in the feild for 20 years, making full use of essence of not only the local Industry but also the forien technology, growing up as one of the top enterprises. Yintian take it as  their misson to supply the most perfect saw blade all over the world, take it as their vision to help stone processing easy, take it as their obligation to deserve every penny of the customers. Yintian will be dedicated to serve you forever !
