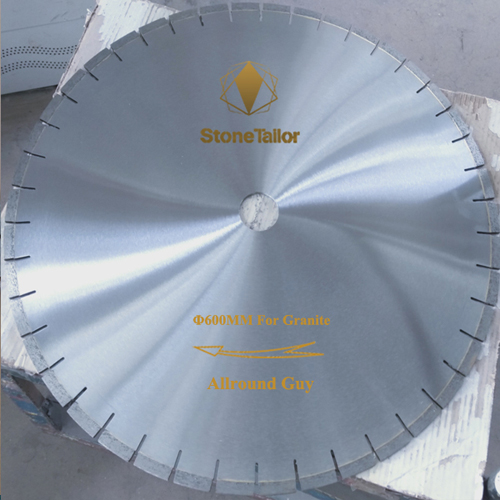

  • φ600MM Granite Blade Mexican Allround Guy
    Excellent Versatility for Various Granites

    STONE TAILOR TOOLS

    The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
    Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
    Cutting Stone Is Like Tailoring Clothing


                           Detailed Product Parameters
    DIAMETER: 24Inch/600MM
    SPCE.: 40*4.8*15*(φ50*42T*3.6MM*U)
    TYPE: Silent / Normal
    SERIES: Allround Guy
    Slot&Holes: Key&Uslot;None&4Holes
    Place Of Origin: Ezhou,Hubei,China
    Customization For Formulas, Parameters, Teeth Type, Packages.



φ600MM Granite Saw Blade Mexican Practical Guy
φ600MM Granite Saw Blade Mexican Practical Guy
φ600MM Granite Blade Mexican Practical Guy
Cheap but Fast&Fine Cutting Granites

STONE TAILOR TOOLS

The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


                       Detailed Product Parameters
DIAMETER: 24Inch/600MM
SPCE.: 40*4.8*12*(φ50*42T*3.6MM*U)
TYPE: Silent / Normal
SERIES: Practical Guy
Slot&Holes: Key&Uslot;None&4Holes
Place Of Origin: Ezhou,Hubei,China
Customization For Formulas, Parameters, Teeth Type, Packages.









Granite is rock solid and quite stable, hard and not easy to decay! From thousands of years of ancient Egyptian pyramids to ancient Indian temples,and then to the Colosseum in ancient Rome, it has always stood and still shines! In the long river of history, it lasts for a long time and remains meaningful!Granite has been widely used in the construction industry at home and abroad because of its superior properties and rich resources.Because of certain hardness and wear resistance, it is more difficult to process than other stones. In this case, the saw blades for processing granite shows their importance.

In order to save the cost,lots of users prefer to buy ordinary quality blades,it turns out that some of them can’t be used for a long time and become useless.In terms of this ordinary granite saw blades,they have a typical sign during working that they can cut sharply at the beginning but hard to last when halfway.So it’s hard to bring out satisfactory and efficient results finally.Limited by production equipment and backward technology,parts of them have different flaws.With the problems of dropping segments,they have to be replaced many times in one working hour, resulting in low processing efficiency.However the granite blade is consumables not a disposable product.In a long run,it will waste your money and time a lot.Under this circumstance,you not only can not achieve the purpose for processing, but also will cause a substantial consumption for equippments.So,the good balance between sharpness and wear-resistance is really important for cutting blade.

Generally speaking,and the sharpness and wear resistance are often inversely,when it’s sharper,its working lifespan will be shorter.Therefore,lots of stone enterprises show their great desire for well-balanced granite saw blade.In response to user needs,Hubei YINTIAN has developed the blade for cutting granite Allround Guy.Its exclusive formula combines sharpness and wear resistance at the same time so that they have a good balance in one diamond blade,which has sawning effects of stable cutting speed,high precision,and sharpness performance.The Granite slabs will have a flat and smooth cutting surface and high cutting area after cutting.The Allround Guy cutting blade also effectively solved the problems of breaking,chipping,burrs so that customers don’t have to worry about the quality.

Is it okay to cut various granite species?Lots of customers have asked the question like this.The Allround Guy can solve this problem very well.It is a kind of blade with excellent Versatility.It can cut more than 90% of conventional granite varieties in one market and effectively avoid the problem of frequent replacing blades,is suitable for professional processing of various granite stones to suit customers different needs.

In addition, there are three different slots designed for Allround Guy to meet the different needs.The blades with key and W shape segments can further enhance the sharpness and capacity of heat dissipation and chip removal.Allround Guy shows its Versatility in different aspects and attracted a large number of customers’attention and support.

One of our Turkey customers, Mr Akyol has been engaged in granite slabs business for more than ten years,specializing in processing the various types of granite plates.He came to us because there are some problems happening in cutting stones but after using our saw blades he was very pleasantly surprised.He thought that if one can cut all granite stones, it will avoid the trouble of changing the saw blade.After a rough calculation, there are more than 10 kinds of granite stones he processed in total.As business is getting better and better, the granite saw blades previously purchased from stone accessories store can no longer meet the increasing demand for orders.The granite blade he used in the past is single-purpose and did not cut with a wide range.He wanted to have a granite blade that can handle all granite slabs and minimize the cost.The best thing for him is to have a saw blade that works well and saves money.Mr Akyol said that it was troublesome to change the saw blade often before,he doesn't have this trouble after cooperating with Hubei YINTIAN.Our Allround Guy is a superior,versatile and cost-effective granite blade that fully meet the customers’ wide-ranged demands.So it is most popular among our customers.



Hubei YINTIAN specializes in producing high-quality Diamond disc for granite, solving cutting problems and saving processing costs to the greatest extent for customers. Allround Guy Diamond Granite Saw Blade is your good helper for cutting all kinds of granite stone.We are looking forward to cooperating with you.


Diamond Saw Blade For Granite 01

 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
1

φ300

12”

Normal
Silent

(40*3.2*15)
*(2.4*21T*50)

None Hole
U Slot

Allround
Guy

02

2

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Allround
Guy

02

3

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Sharp
King

05

4

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Sharp
Prince

06

5

φ400
16''

Normal
Silent

(40*3.6*15)

*(2.8*28T*50)

None Hole
U Slot

Allround
Guy

02

6

φ450
18''

Normal
Silent

(40*4.2*12)

*(3.0*32T*50)

None Hole
U Slot

Allround
Guy

02

7

φ450
18''

Normal
Silent

(40*4.2*15)

*(3.0*32T*50)

4 Holes
U Slot

Allround
Guy

02

8

φ500
20''

Normal
Silent

(40*4.2*15)

*(3.0*36T*50)

None Hole
U Slot

Allround
Guy

02

9

φ500
20''

Normal
Silent

(40*4.2*12)

*(3.0*36T*50)

None Hole
U Slot

Practical

Guy

09

10

φ550

22''

Normal
Silent

(40*4.3*12)

*(3.2*38T*50)

None Hole
K Slot

Allround

Guy

09

11

φ600

24''

Normal
Silent

(40*4.8*12)

*(3.6*42T*50)

None Hole
U Slot

Practical

Guy

09

12

φ600

24''

Normal
Silent

(40*4.8*15)

*(3.6*42T*50)

None Hole
U Slot

Allround
Guy

02

13

φ650

26''

Normal
Silent

(40*4.8*12)

*(3.6*40T*50)

2 Holes
U Slot

Allround
Guy

02

14

φ700

28''

Normal
Silent

(40*5.5*15)

*(4.0*40T*50)

4 Holes
U Slot

Allround
Guy

02

15

φ750

30''

Normal
Silent

(40*5.5*12)

*(4.0*46T*50)

None Hole
U Slot

Allround
Guy

02

16

φ800

32''

Normal
Silent

(40*6.0*12)

*(4.5*46T*50)

4 Holes
U Slot

Allround
Guy

02

Diamond Saw Blade For Marble 02
 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
17

φ300
12''

Normal
Silent

(40/39*2.7*8)

*(2.2*23T*50)

None Hole
Musical Slot

White
Angel

12

18

φ350
14''

Normal
Silent

(39/37.8*2.8*9)

*(2.3*27T*50)

None Hole
U Slot

Red
Queen

11

19

φ350
14''

Normal
Silent

(39/37.8*2.8*9)

*(2.3*27T*50)

None Hole
U Slot

Black
Queen

10
20

φ350
14''

Normal
Silent

(39/37.8*2.8*9)

*(2.3*27T*50)

None Hole
U Slot

Purple
Queen

10

21

φ350
14''

Normal
Silent

(40/39*2.7*8)

*(2.3*27T*50)

None Hole
Musical Slot

White
Angel

12

22

φ350
14''

Normal
Silent

(40/39*2.9*8)

*(2.3*27T*50)

None Hole
U Slot

Super
Scud

13

23

φ400
16''

Normal
Silent

(39/37.8*3.4*9)

*(2.6*31T*50)

None Hole
U Slot

Super
Scud

13

24

φ400
16''

Normal
Silent

(39/37.8*3.4*9)

*(2.6*31T*50)

None Hole
U Slot

Red
Queen

11

25

φ400
16''

Normal
Silent

(41.5/40*2.9*8)

*(2.2*30T*50)

None Hole
Musical Slot

White
Angel

12

26

φ350

14''

Normal
Silent

 (43/41.5*2.9*8)

*(2.2*25T*60)

None Hole
U Slot

Super

Scud

13

27

φ400

16''

Normal
Silent

 (40*3.6*10)

*(2.8*28T*60)

None Hole
U Slot

Super

Scud

13

28

φ450

18''

Normal
Silent

(40*4.2*10)

*(3.0*32T*90/60)

None Hole
U Slot

Super

Scud

13

29

φ500
20''

Normal
Silent

(40*4.3*10)

*(3.0*36T*50)

None Hole
U Slot

Scud

14

30

φ500
20''

Normal
Silent

(40*4.2*10)

*(3.0*36T*90/60)

None Hole
U Slot

Super

Scud

13

31

φ600

24''

Normal
Silent

 (40*4.8*10)

*(3.6*42T*90/60)

None Hole
U Slot

Super

Scud

13

32

φ650

26''

Normal
Silent

 (40*4.8*10)

*(3.6*40T*60)

None Hole
U Slot

Super

Scud

13

33

φ700

28''

Normal
Silent

 (38*5.2*10)

*(4.0*40T*60)

None Hole
U Slot

Super

Scud

13

34

φ800

32''

Normal
Silent

 (38*6.0*10)

*(4.5*46T*60)

None Hole
U Slot

Super

Scud

13

Diamond Saw Blade For Sandstone 03
 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
35

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Allround
Guy

02

36

φ400
16''

Normal
Silent

(40*3.8*15)

*(2.8*28T*50)

None Hole
U Slot

Allround
Guy

02

37

φ450
18''

Normal
Silent

(40*4.0*15)

*(3.0*32T*50)

None Hole
U Slot

Allround
Guy

02

38

φ500
20''

Normal
Silent

(40*4.2*15)

*(3.0*36T*50)

None Hole
U Slot

Allround
Guy

02

39

φ600
24''

Normal
Silent

(40*4.5*15)

*(3.6*42T*50)

None Hole
U Slot

Allround
Guy

02

Diamond Saw Blade For Hot-press 04
 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
40

φ110
4.5''

Protective
-teeth

2.0T*10X*1.2E*

9Z*22.23H

None Hole

U Slot

Allround
Guy

02

41

φ115
4.5''

Protective
-teeth

2.0T*15X*1.4E*

8Z*22.23H

None Hole

K Slot

Allround
Guy

02

42

φ125
5''

Segmented

T-teeth

2.2T*10X*1.2E*

10Z*22.23H

None Hole

U Slot

Allround
Guy

02

43

φ180
7''

Flower-teeth

2.4T*10X*1.6E*

14Z*22.23H

4 Holes

K Slot

Allround
Guy

02

44

φ180
7''

Triangular

-turbo

2.6T*10X*1.8E*

22.23H*Rim

12 Holes

Rim

Allround
Guy

02

45

φ180

7''

Rimmed

T-teeth

2.6T*10X*1.8E*

22.23H*Rim

15 Holes

Rim

Allround
Guy

02

46

φ230

9''

Protective

-teeth

2.6T*10X*1.8E*

21Z*22.23H

None Hole

U Slot

Allround
Guy

02

47

φ230

9''

Triangular

-turbo

2.8T*10X*2.0E*

22.23H*Rim

30 Holes

Rim

Allround
Guy

02

Diamond Segments For Sandstone 05
 ITEM  DIA.MM PICTURE THICKNESS SPEC.MM SEG. No    SERIES    CODE
48

φ1600
64''

7.2

24*8.4/9.0*15/14

80 PCS

Allround
Guy

02

49

φ1600
64''

7.2

24*8.4/9.0*15/14

80 PCS

Allround
Guy

02

50

φ1600
64''

7.2

24*8.4/9.0*15

80 PCS

Allround
Guy

02

51

φ1600
64''

7.2

24*9.6/10.2*15/14

80 PCS

Allround
Guy

02

Diamond Segments For Marble 06
 ITEM  DIA.MM PICTURE THICKNESS SPEC.MM SEG. No    SERIES    CODE
52

φ1600
64''

7.2/8

24*8.4/9.0*15

80 PCS

Allround
Guy

02

 For Cup Grinding Wheel 07
 ITEM  DIA.MM PICTURE TYPE SPEC.MM HOLES/SLOT    SERIES    CODE
53

φ100
4''

Cross-teeth

5.7*12*20/22.23

with Rings

Cross-teeth
Seg./11

Allround
Guy

02

54

φ100
4''

Double-row

7*(8*2)

*22.23

Double-row
Seg./8*2

Allround
Guy

02

55

φ115
4.6''

Double-row

7*(9*2)

*22.23

Double-row
Seg./9*2

Allround
Guy

02

56

φ125
5''

Double-row

7*(10*2)

*22.23

Double-row
Seg./10*2

Allround
Guy

02

57

φ150
6''

Double-row

7*(12*2)

*22.23

Double-row
Seg./12*2

Allround
Guy

02

58

φ180
7''

Double-row

7*(12*2)

*22.23

Double-row
Seg./12*2

Allround
Guy

02

59

φ100
4''

Aluminuim

7.5*24

*M14

M14

&5/8-1

Allround
Guy

02

 For Polishing Pad 08
 ITEM  DIA.MM PICTURE TYPE   GRITS THICKNESS    SERIES    CODE
60

φ100
4''

Convex-tooth

Dry

50# 100# 200#
400# 800# 1500#
3000# Buff#

2.5MM

Allround
Guy

02

61

φ100
4''



Flat-tooth

Dry

50# 100# 200#
400# 800# 1500#
3000# Buff#

2.5MM

Allround
Guy

02

62

φ100
4''



Flat-tooth

Wet

50# 100# 200#
400# 800# 1500#
3000# Buff#

3MM

Allround
Guy

02

  • Allround Guy Cutting The Golden Diamond Grain
  • Allround Guy Cutting The Plateau Snow
  • Allround Guy Cutting The Imperial Red
  • Allround Guy Cut
    the Imperial Red use for Stairs
  • Allround Guy Cut
    the Tan Brown use for Floor tile
  • Allround Guy Cut
    the Shidao Red use for exterior wall
  • Allround Guy Cut
    G654 use for Cabinet board
  • The first type of clients:they deal with the complex structure of stone. For example, a lot of granite plate they cut include higher Quartz particles, at the same time with high sand content, small stone density, but with strong grinding, it is very expensive to waste segments. therefore, you must adopt a kind of saw blade with high degree of sharpness, and extraordinary abrasive resistance, in order to adapt to their daily stone material processing needs perfectly.
  • The second type of clients:They come from all over the world. Single volume is huge, they are cautious about the import every time, in pursuit of details, and testing all-round saw blade of sharpness and abrasive resistance. They come to China, looking for the saw blade with high performance, which can fit all their requirements perfectly.
  • The third type of clients:They have a wide range of customers from different parts of the country, with regular orders, and the amount is huge, they need a kind of saw blade with cutting stability, suitable for a range of stones, which can ensure that their customers are satisfied with the quality without delay of their purchase cycle.
  • The fourth category of customers:Compared to cost of saw blade, they are more valued safety and quality of the saw blade, their losses are huge for any safety accident, so their demand is no fall teeth or out of shape.
  • The fifth category of customers:They have huge stone quantity, and the consumption of saw blades is extremely large, the biggest challenge that they faced with is how to smoothly complete a project with limited time under the reasonable cost. They need a sharp and long lifespan saw blade to help them solve the problem.
  • The sixth category of customers:Stone factory is the permanent place that they stay across the country, and their clients target in high-end stone, while they asked for saw blades with high performance cost, not only the cutting effect is stable, lifespan should also be excellent.

 Mr. Chen dealer from Jiangxi Allround Guy

Jiangxi dealer Mr. Chen has cooperated with the Yintian company for five years, every time he calls for ordering the diamond saw blades, he praised that it is not that easy to find a diamond saw blade with high cost performance like Yintian in diamond tools market, for the normal diamond blade in the diamond tools industry, if the price is low, the sharpness would absolutely not satisfying, and the customers would never buy it again. Mr. Chen said, with Yintian diamond saw blade, his sales volume has a sharp increasing. He always worried about the quality while ordering the economic blade during the past, but now this point is no longer a problem to him.

Mr. Zheng the head of a mining area Allround Guy

"Good partner at work, great expert on the budget!" Mr. Cheng from Gaizhou praised the Sharp Price among his friends. Mr. Zheng was the head of a mining area in Gaizhou, whose main stone was Granite stone including a lot of sand and quartz, he said that this stone is very difficult to deal with, cause sand and quartz stone cutting requires perfect sharpness, it is prone to collapse, but in the mining area where the budget is tight, they cannot choose high-grade saw blade, which requires the blade with high quality and acceptable price at the same time, and it should also meet this basic requirements for processing.We used a lot of economic saw blades which could not meet the basic requirements, or else with some problems of the collapse and working life, it's reported that this kind of saw blade has high performance, And later decided to purchase the products after the introduction of the product selection, the effects match with the site described, it's very useful even harder stone processing which made me very satisfied the after-sale services is professional, I believe we will have a good relationship in the future.

Mr. Ma foreign client Allround Guy

Mr. Ma is an Egyptian customer whom we met at the fair. He bought a few pieces of saw blades from our exhibition at the fair. before long, he contacted our product consultants and was quite satisfied with our products, willing to visit Yintian company, he said there were different kinds of saw blades at the fair. he was taking some test orders after having looking for some saw blades, specifically looking for economical saw blade to test, and economical saw blade can achieve a high performance, let along other products, he was satisfied with the test order so that he found out the series sharp king, with the price relatively similar in the markets, the yield is very high, without any collapse of the corner, so later he decided to come to visit the factory in Yintian, and signed a long-term cooperation agreement.






* Indicated required field Inquire:φ600MM Granite Saw Blade Mexican Allround Guy
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
* Validate Code: Validate Code
Please fill in the quantity and description of Inquire products for uniform stocking.
φ600MM Granite Saw Blade Mexican Practical Guy
φ600MM Granite Saw Blade Mexican Practical Guy
φ600MM Granite Blade Mexican Practical Guy
Cheap but Fast&Fine Cutting Granites

STONE TAILOR TOOLS

The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


                       Detailed Product Parameters
DIAMETER: 24Inch/600MM
SPCE.: 40*4.8*12*(φ50*42T*3.6MM*U)
TYPE: Silent / Normal
SERIES: Practical Guy
Slot&Holes: Key&Uslot;None&4Holes
Place Of Origin: Ezhou,Hubei,China
Customization For Formulas, Parameters, Teeth Type, Packages.



- comments in total【Write a ReviewCustomer Reviews

Loading...
Your E-mail:
* Content:
(Up to 1,000 characters)
Verification code: Not clear?!
