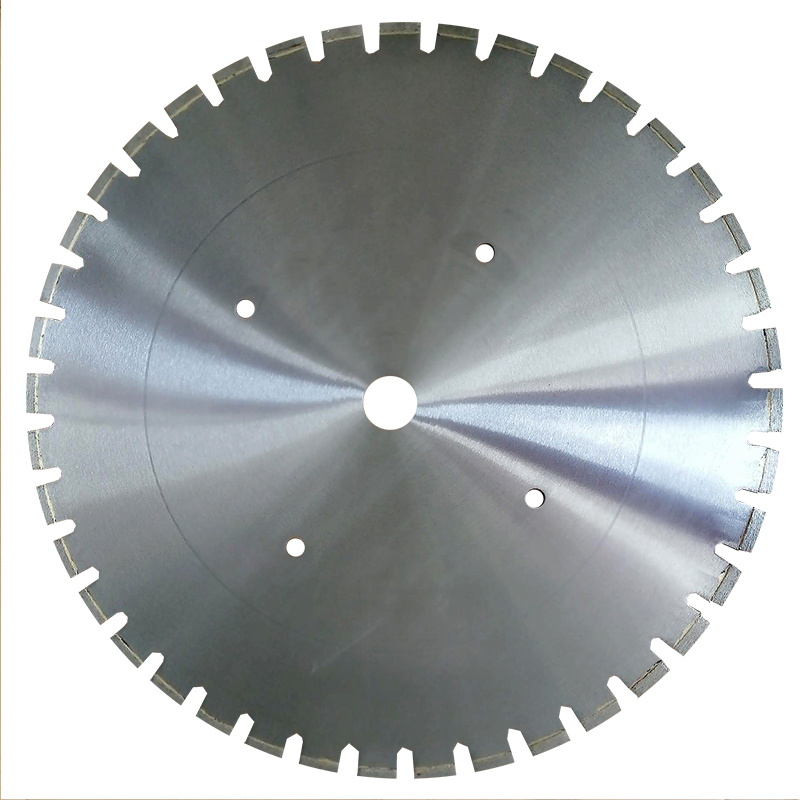

    φ700MM Sandstone Blade Universal Products
    Excellent Versatility for Various Sandstone
    STONE TAILOR TOOLS
    The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
    Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
    Cutting Stone Is Like Tailoring Clothing


                 Detailed Product Parameters
    DIAMETER： 28Inch /250MM
    SPCE.： 40L*5.5T*15X* (4.0E*40Z*50H*Wide U Slot )
    TYPE： Silent / Normal
    SERIES： Durable Guy
    Slot&Holes: Key&Uslot；None&4Holes
    Place Of Orign： Ezhou，Hubei，China
    Customization： For Formulas, Parameters, Teeth Type, Packages.




Related products
φ250MM Sandstone Saw Blade Universal Products
φ250MM Sandstone Saw Blade Universal Products



φ250MM Sandstone Blade Universal Products
Excellent Versatility for Various Sandstone
STONE TAILOR TOOLS
The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


             Detailed Product Parameters
DIAMETER： 10Inch /250MM
SPCE.： 40L*3.3T*15X*(2.2E*17Z*50H*U Slot)
TYPE： Silent / Normal
SERIES： Durable Guy
Slot&Holes: Key&Uslot；None&4Holes
Place Of Orign： Ezhou，Hubei，China
Customization： For Formulas, Parameters, Teeth Type, Packages.




φ300MM Sandstone Saw Blade Universal Products
φ300MM Sandstone Saw Blade Universal Products



φ250MM Sandstone Blade Universal Products
Excellent Versatility for Various Sandstone
STONE TAILOR TOOLS
The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


             Detailed Product Parameters
DIAMETER： 12Inch /300MM
SPCE.： 40L*3.3T*15X* (2.2E*21Z*50H*U Slot)
TYPE： Silent / Normal
SERIES： Durable Guy
Slot&Holes: Key&Uslot；None&4Holes
Place Of Orign： Ezhou，Hubei，China
Customization： For Formulas, Parameters, Teeth Type, Packages.




φ350MM Sandstone Saw Blade Universal Products
φ350MM Sandstone Saw Blade Universal Products



φ350MM Sandstone Blade Universal Products
Excellent Versatility for Various Sandstone
STONE TAILOR TOOLS
The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


             Detailed Product Parameters
DIAMETER： 14Inch /350MM
SPCE.：   40L*3.3T*15X* (2.4E*24Z*50H*U Slot)
TYPE： Silent / Normal
SERIES： Durable Guy
Slot&Holes: Key&Uslot；None&4Holes
Place Of Orign： Ezhou，Hubei，China
Customization： For Formulas, Parameters, Teeth Type, Packages.











Diamond Saw Blade For Granite 01
 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
1

φ300

12”

Normal
Silent

 (40*3.2*15)
*(2.4*21T*50)

None Hole
U Slot

Allround
Guy

02
2

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Allround
Guy

02
3

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Sharp
King

05
4

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Sharp
Prince

06
5

φ400
16''

Normal
Silent

(40*3.6*15)

*(2.8*28T*50)

None Hole
U Slot

Allround
Guy

02
6

φ450
18''

Normal
Silent

(40*4.2*12)

*(3.0*32T*50)

None Hole
U Slot

Allround
Guy

02
7

φ450
18''

Normal
Silent

(40*4.2*15)

*(3.0*32T*50)

4 Holes
U Slot

Allround
Guy

02
8

φ500
20''

Normal
Silent

(40*4.2*15)

*(3.0*36T*50)

None Hole
U Slot

Allround
Guy

02
9

φ500
20''

Normal
Silent

(40*4.2*12)

*(3.0*36T*50)

None Hole
U Slot

Practical

Guy

09
10

φ550

22''

Normal
Silent

(40*4.3*12)

*(3.2*38T*50)

None Hole
K Slot

Allround

Guy

09
11

φ600

24''

Normal
Silent

(40*4.8*12)

*(3.6*42T*50)

None Hole
U Slot

Practical

Guy

09
12

φ600

24''

Normal
Silent

(40*4.8*15)

*(3.6*42T*50)

None Hole
U Slot

Allround
Guy

02
13

φ650

26''

Normal
Silent

(40*4.8*12)

*(3.6*40T*50)

2 Holes
U Slot

Allround
Guy

02
14

φ700

28''

Normal
Silent

(40*5.5*15)

*(4.0*40T*50)

4 Holes
U Slot

Allround
Guy

02
15

φ750

30''

Normal
Silent

(40*5.5*12)

*(4.0*46T*50)

None Hole
U Slot

Allround
Guy

02
16

φ800

32''

Normal
Silent

(40*6.0*12)

*(4.5*46T*50)

4 Holes
U Slot

Allround
Guy

02
Diamond Saw Blade For Marble 02
 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
17

φ300
12''

Normal
Silent

(40/39*2.7*8)

*(2.2*23T*50)

None Hole
Musical Slot

White
Angel

12
18

φ350
14''

Normal
Silent

(39/37.8*2.8*9)

*(2.3*27T*50)

None Hole
U Slot

Red
Queen

11
19

φ350
14''

Normal
Silent

(39/37.8*2.8*9)

*(2.3*27T*50)

None Hole
U Slot

Black
Queen

 10
20

φ350
14''

Normal
Silent

(39/37.8*2.8*9)

*(2.3*27T*50)

None Hole
U Slot

Purple
Queen

10
21

φ350
14''

Normal
Silent

(40/39*2.7*8)

*(2.3*27T*50)

None Hole
Musical Slot

White
Angel

12
22

φ350
14''

Normal
Silent

(40/39*2.9*8)

*(2.3*27T*50)

None Hole
U Slot

Super
Scud

13
23

φ400
16''

Normal
Silent

(39/37.8*3.4*9)

*(2.6*31T*50)

None Hole
U Slot

Super
Scud

13
24

φ400
16''

Normal
Silent

(39/37.8*3.4*9)

*(2.6*31T*50)

None Hole
U Slot

Red
Queen

11
25

φ400
16''

Normal
Silent

(41.5/40*2.9*8)

*(2.2*30T*50)

None Hole
Musical Slot

White
Angel

12
26

φ350

14''

Normal
Silent

 (43/41.5*2.9*8)

*(2.2*25T*60)

None Hole
U Slot

Super

Scud

13
27

φ400

16''

Normal
Silent

 (40*3.6*10)

*(2.8*28T*60)

None Hole
U Slot

Super

Scud

13
28

φ450

18''

Normal
Silent

(40*4.2*10)

*(3.0*32T*90/60)

None Hole
U Slot

Super

Scud

13
29

φ500
20''

Normal
Silent

(40*4.3*10)

*(3.0*36T*50)

None Hole
U Slot

 Scud

14
30

φ500
20''

Normal
Silent

(40*4.2*10)

*(3.0*36T*90/60)

None Hole
U Slot

Super

Scud

13
31

φ600

24''

Normal
Silent

 (40*4.8*10)

*(3.6*42T*90/60)

None Hole
U Slot

Super

Scud

13
32

φ650

26''

Normal
Silent

 (40*4.8*10)

*(3.6*40T*60)

None Hole
U Slot

Super

Scud

13
33

φ700

28''

Normal
Silent

 (38*5.2*10)

*(4.0*40T*60)

None Hole
U Slot

Super

Scud

13
34

φ800

32''

Normal
Silent

 (38*6.0*10)

*(4.5*46T*60)

None Hole
U Slot

Super

Scud

13
Diamond Saw Blade For Sandstone 03
 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
35

φ350
14''

Normal
Silent

(40*3.3*15)

*(2.4*24T*50)

None Hole
U Slot

Allround
Guy

02
36

φ400
16''

Normal
Silent

(40*3.8*15)

*(2.8*28T*50)

None Hole
U Slot

Allround
Guy

02
37

φ450
18''

Normal
Silent

(40*4.0*15)

*(3.0*32T*50)

None Hole
U Slot

Allround
Guy

02
38

φ500
20''

Normal
Silent

(40*4.2*15)

*(3.0*36T*50)

None Hole
U Slot

Allround
Guy

02
39

φ600
24''

Normal
Silent

(40*4.5*15)

*(3.6*42T*50)

None Hole
U Slot

Allround
Guy

02
Diamond Saw Blade For Hot-press 04
 ITEM  DIA.MM PICTURE  TYPE  SPEC.MM HOLES/SLOT    SERIES    CODE
40

φ110
4.5''

Protective
-teeth

2.0T*10X*1.2E*

9Z*22.23H

None Hole

U Slot

Allround
Guy

02
41

φ115
4.5''

Protective
-teeth

2.0T*15X*1.4E*

8Z*22.23H

None Hole

K Slot

Allround
Guy

02
42

φ125
5''

Segmented

T-teeth

2.2T*10X*1.2E*

10Z*22.23H

None Hole

U Slot

Allround
Guy

02

43

φ180
7''

Flower-teeth

2.4T*10X*1.6E*

14Z*22.23H

4 Holes

K Slot

Allround
Guy

02

44

φ180
7''

Triangular

-turbo

2.6T*10X*1.8E*

22.23H*Rim

12 Holes

Rim

Allround
Guy

02

45

φ180

7''

Rimmed

T-teeth

2.6T*10X*1.8E*

22.23H*Rim

15 Holes

Rim

Allround
Guy

02

46

φ230

9''

Protective

-teeth

2.6T*10X*1.8E*

21Z*22.23H

None Hole

U Slot

Allround
Guy

02

47

φ230

9''

Triangular

-turbo

2.8T*10X*2.0E*

22.23H*Rim

30 Holes

Rim

Allround
Guy

02
Diamond Segments For Sandstone 05
 ITEM  DIA.MM PICTURE THICKNESS SPEC.MM SEG. No    SERIES    CODE
48

φ1600
64''

7.2

24*8.4/9.0*15/14

80 PCS

Allround
Guy

02
49

φ1600
64''

7.2

24*8.4/9.0*15/14

80 PCS

Allround
Guy

02
50

φ1600
64''

7.2

 24*8.4/9.0*15

80 PCS

Allround
Guy

02
51

φ1600
64''

7.2

 24*9.6/10.2*15/14

80 PCS

Allround
Guy

02
Diamond Segments For Marble 06
 ITEM  DIA.MM PICTURE THICKNESS SPEC.MM SEG. No    SERIES    CODE
52

φ1600
64''

7.2/8

 24*8.4/9.0*15

80 PCS

Allround
Guy

02
 For Cup Grinding Wheel 07
 ITEM  DIA.MM PICTURE TYPE SPEC.MM HOLES/SLOT    SERIES    CODE
53

φ100
4''

Cross-teeth

5.7*12*20/22.23

with Rings

Cross-teeth
Seg./11

Allround
Guy

02
54

φ100
4''

Double-row

7*(8*2)

*22.23

Double-row
Seg./8*2

Allround
Guy

02
55

φ115
4.6''

Double-row

7*(9*2)

*22.23

Double-row
Seg./9*2

Allround
Guy

02
56

φ125
5''

Double-row

7*(10*2)

*22.23

Double-row
Seg./10*2

Allround
Guy

02
57

φ150
6''

Double-row

7*(12*2)

*22.23

Double-row
Seg./12*2

Allround
Guy

02
58

φ180
7''

Double-row

7*(12*2)

*22.23

Double-row
Seg./12*2

Allround
Guy

02
59

φ100
4''

Aluminuim

7.5*24

*M14

M14

&5/8-1

Allround
Guy

02
 For Polishing Pad 08
 ITEM  DIA.MM PICTURE TYPE   GRITS THICKNESS    SERIES    CODE
60

φ100
4''

Convex-tooth

Dry

50# 100# 200#
400# 800# 1500#
3000# Buff#

2.5MM

Allround
Guy

02
61

φ100
4''



Flat-tooth

Dry

50# 100# 200#
400# 800# 1500#
3000# Buff#

2.5MM

Allround
Guy

02
62

φ100
4''



Flat-tooth

Wet

50# 100# 200#
400# 800# 1500#
3000# Buff#

3MM

Allround
Guy

02
  • Allround Guy Cutting The Golden Diamond Grain
  • Allround Guy Cutting The Plateau Snow
  • Allround Guy Cutting The Imperial Red
  • Allround Guy Cut
    the Imperial Red use for Stairs
  • Allround Guy Cut
    the Tan Brown use for Floor tile
  • Allround Guy Cut
    the Shidao Red use for exterior wall
  • Allround Guy Cut
    G654 use for Cabinet board
Allround Guy, economical with great sharpness.
Allround Guy, short teeth, it is suitable for hard granite such as Sesame Grey, Iron Red and all kinds of granite dye board. The verticality and flatness error≤0.6mm, cutting gap≤4.0mm, cutting speed with net≥8m/min, while cutting speed without net≥7m/min. Lifespan of cutting stone board with the thickness of 2.5cm-3.0cm≥180㎡. Sharp Prince10#, long teeth, it is suitable for normal granite such as Anhai White, Tiger Skin White, Olive Green etc. The verticality and flatness error≤0.5mm, cutting gap≤4.1mm, cutting speed with net≥8m/min, while cutting speed without net≥7m/min. Lifespan of cutting stone board with the thickness of 2.5cm-3.0cm≥150㎡. both diamond saw blade are quite sharp without chipping, scar or broken corner, while the cutting line is straight.
Allround Guy, first choice for mining area
Allround Guy (size:GZ120), short teeth, specially used in granite board with large sediment and quartz concentration such as golden Grain. It is used in Gaizhou mining area where there is high power configuration, and cut the board with the thickness of 2.5cm-3.0cm, meanwhile, it can make sure cutting process smoothly without chipping, scar or broken corner, lifespan≥300㎡. Sharp Prince#11, long teeth, it is specially used in granite board with large sediment and quartz concentration such as Yellow Rust Granite. Its market share concentrates in Anshan, Xinjiang and Henan, and suitable for 15KW bridge cutting machine. This type can cut the board with the thickness of 2.5cm-3.0cm, meanwhile, and can make sure cutting process smoothly without chipping, scar or broken corner, lifespan≥220㎡
Allround Guy saw blade: the pioneer of economical sharpness and abrasive resistance
Allround Guy: SH48A plus long teeth, cutting conventional granite slabs such as Anhai White, Tiger Skin White, olive green, California curse, etc., super sharp, without collapse, corner ,tail, scar phenomenon, the cutting line with straight smooth is of high performance, the verticality and squareness and diagonal error≤0.5mm cutting gap≤4.1mm the max cutting speed is over 8m/min with net, without net it can reach over 7m/min. the working life can be over 150 m2 with cutting the slab plate (thickness:2.5mm-3.0mm).
Allround Guy：leader in cutting slate/shale
Allround Guy#(specification:SH110)short teeth, cutting the regular slate such as Sesame White, (specification:600×600mm,300×300mm,600×300mm),the advantage is prominent, usual, the working life≥220m2, with good performance of no chipping, tail; sharp prince12#(specification:SH65) long teeth cut the regular granite like Bain brook Peach, Tan Brown, Black Galaxy with specification of 600mm*600mm, 300mm*300mm, 600mm*300mm.the working life is more than 200m2 with absolute advantage of no chipping tail., what’s more, the cutting structure is very simple, with good sharpness and good cutting effects.
  • The first type of clients:they deal with the complex structure of stone. For example, a lot of granite plate they cut include higher Quartz particles, at the same time with high sand content, small stone density, but with strong grinding, it is very expensive to waste segments. therefore, you must adopt a kind of saw blade with high degree of sharpness, and extraordinary abrasive resistance, in order to adapt to their daily stone material processing needs perfectly.
  • The second type of clients:They come from all over the world. Single volume is huge, they are cautious about the import every time, in pursuit of details, and testing all-round saw blade of sharpness and abrasive resistance. They come to China, looking for the saw blade with high performance, which can fit all their requirements perfectly.
  • The third type of clients:They have a wide range of customers from different parts of the country, with regular orders, and the amount is huge, they need a kind of saw blade with cutting stability, suitable for a range of stones, which can ensure that their customers are satisfied with the quality without delay of their purchase cycle.
  • The fourth category of customers:Compared to cost of saw blade, they are more valued safety and quality of the saw blade, their losses are huge for any safety accident, so their demand is no fall teeth or out of shape.
  • The fifth category of customers:They have huge stone quantity, and the consumption of saw blades is extremely large, the biggest challenge that they faced with is how to smoothly complete a project with limited time under the reasonable cost. They need a sharp and long lifespan saw blade to help them solve the problem.
  • The sixth category of customers:Stone factory is the permanent place that they stay across the country, and their clients target in high-end stone, while they asked for saw blades with high performance cost, not only the cutting effect is stable, lifespan should also be excellent.

 Mr. Chen dealer from Jiangxi Allround Guy

Jiangxi dealer Mr. Chen has cooperated with the Yintian company for five years, every time he calls for ordering the diamond saw blades, he praised that it is not that easy to find a diamond saw blade with high cost performance like Yintian in diamond tools market, for the normal diamond blade in the diamond tools industry, if the price is low, the sharpness would absolutely not satisfying, and the customers would never buy it again. Mr. Chen said, with Yintian diamond saw blade, his sales volume has a sharp increasing. He always worried about the quality while ordering the economic blade during the past, but now this point is no longer a problem to him.

Mr. Zheng the head of a mining area Allround Guy

"Good partner at work, great expert on the budget!" Mr. Cheng from Gaizhou praised the Sharp Price among his friends. Mr. Zheng was the head of a mining area in Gaizhou, whose main stone was Granite stone including a lot of sand and quartz, he said that this stone is very difficult to deal with, cause sand and quartz stone cutting requires perfect sharpness, it is prone to collapse, but in the mining area where the budget is tight, they cannot choose high-grade saw blade, which requires the blade with high quality and acceptable price at the same time, and it should also meet this basic requirements for processing.We used a lot of economic saw blades which could not meet the basic requirements, or else with some problems of the collapse and working life, it's reported that this kind of saw blade has high performance, And later decided to purchase the products after the introduction of the product selection, the effects match with the site described, it's very useful even harder stone processing which made me very satisfied the after-sale services is professional, I believe we will have a good relationship in the future.

Mr. Ma foreign client Allround Guy

Mr. Ma is an Egyptian customer whom we met at the fair. He bought a few pieces of saw blades from our exhibition at the fair. before long, he contacted our product consultants and was quite satisfied with our products, willing to visit Yintian company, he said there were different kinds of saw blades at the fair. he was taking some test orders after having looking for some saw blades, specifically looking for economical saw blade to test, and economical saw blade can achieve a high performance, let along other products, he was satisfied with the test order so that he found out the series sharp king, with the price relatively similar in the markets, the yield is very high, without any collapse of the corner, so later he decided to come to visit the factory in Yintian, and signed a long-term cooperation agreement.





Related Keywords :

diamond circular saw blades for granite
* Indicated required field Inquire:φ700MM Sandstone Saw Blade Universal Products
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
* Validate Code: Validate Code
Please fill in the quantity and description of Inquire products for uniform stocking.
Related products
φ250MM Sandstone Saw Blade Universal Products
φ250MM Sandstone Saw Blade Universal Products



φ250MM Sandstone Blade Universal Products
Excellent Versatility for Various Sandstone
STONE TAILOR TOOLS
The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


             Detailed Product Parameters
DIAMETER： 10Inch /250MM
SPCE.： 40L*3.3T*15X*(2.2E*17Z*50H*U Slot)
TYPE： Silent / Normal
SERIES： Durable Guy
Slot&Holes: Key&Uslot；None&4Holes
Place Of Orign： Ezhou，Hubei，China
Customization： For Formulas, Parameters, Teeth Type, Packages.




φ300MM Sandstone Saw Blade Universal Products
φ300MM Sandstone Saw Blade Universal Products



φ250MM Sandstone Blade Universal Products
Excellent Versatility for Various Sandstone
STONE TAILOR TOOLS
The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


             Detailed Product Parameters
DIAMETER： 12Inch /300MM
SPCE.： 40L*3.3T*15X* (2.2E*21Z*50H*U Slot)
TYPE： Silent / Normal
SERIES： Durable Guy
Slot&Holes: Key&Uslot；None&4Holes
Place Of Orign： Ezhou，Hubei，China
Customization： For Formulas, Parameters, Teeth Type, Packages.




φ350MM Sandstone Saw Blade Universal Products
φ350MM Sandstone Saw Blade Universal Products



φ350MM Sandstone Blade Universal Products
Excellent Versatility for Various Sandstone
STONE TAILOR TOOLS
The Flagship Brand Of YINTIAN DIAMOND TOOLS Since 1997
Chinese Pioneer Stone Tools Manufacturer With Top-quality Products
Cutting Stone Is Like Tailoring Clothing


             Detailed Product Parameters
DIAMETER： 14Inch /350MM
SPCE.：   40L*3.3T*15X* (2.4E*24Z*50H*U Slot)
TYPE： Silent / Normal
SERIES： Durable Guy
Slot&Holes: Key&Uslot；None&4Holes
Place Of Orign： Ezhou，Hubei，China
Customization： For Formulas, Parameters, Teeth Type, Packages.







- comments in total【Write a Review】Customer Reviews

Loading...
View all comments
Your E-mail:
* Content:
(Up to 1,000 characters)
Verification code: Not clear?!

About YinTian| Products Center| Privacy Policy| Website map

YinTian

Tel:+86-18971996299

Email: yintian@ytdtool.com

Skype: Hubei Yintian

Add: No.42-1, YinTian Industrial Park, Edong Avenue, Ezhou, Hubei, P.R.China

Copyright?2013 HUBEI YINTIAN DIAMOND TOOLS INDUSTRY CO.,LTD. All Rights Reserved
